Robot End Effector Search Results

• • 8 results found. ( 1~8 to Showing )

• ARM-K-HP04LR-20C

  Feature	Compatible with the dual-arm SCARA robot “duAro 1,2” robotics R series. Including mounting attachment, open/close sensor, open/close speed control valve, and materials required for installation. Adopting high precision and high rigidity bearing, it can be used for long grip point applications.

  Open/Close Type	Parallel　Linear　Gripper(Long　Stroke Type)
  Cylinder Bore[mm]	20mm	Number of Lever	2
  Operating Type	Double Acting	Gripping Force(Closing Force) *Force exerted on work piece	45.0N
  Stroke	22.0mm	Product Mass[g]	640g～
  Operating Temperatura Range[°]	0～60℃ (No Freezing)
  Switch	Included	Opening and closing speed valve	Included
  Supported Robot	RS-003N,RS-005N/L,RS-007N/L,duAro1,duAro2. Compatible robots are as follows. * Select a robot according to the gripper and work weight.
  Provided CAD data Plugin	DXF・STEP



  Outline drawing
  mounting example

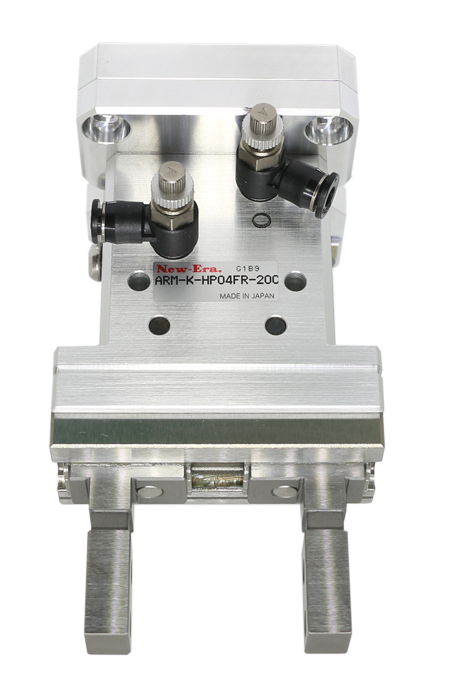

  ARM-K-HP04FR-20C

  Feature	Compatible with the robotics R series. Including mounting attachment, open/close sensor, open/close speed control valve, and materials required for installation. Adopting high precision and high rigidity bearing, it can be used for long grip point applications.

  Open/Close Type	Parallel　Linear　Gripper（Finger　(Long Ｆｉｎｇｅｒ)　Ｔｙｐｅ)
  Cylinder Bore[mm]	20mm	Number of Lever	2
  Operating Type	Double Acting	Gripping Force(Closing Force) *Force exerted on work piece	49.0N
  Stroke	14.0mm	Product Mass[g]	640g～
  Operating Temperatura Range[°]	0～60℃ (No Freezing)
  Switch	Included	Opening and closing speed valve	Included
  Supported Robot	RS-003N,RS-005N/L,RS-007N/L. Compatible robots are as follows. * Select a robot according to the gripper and work weight.
  Provided CAD data Plugin	DXF・STEP



  Outline drawing
  mounting example

  ARM-K-HP04R-25C

  Feature	Compatible with the robotics R series. Including mounting attachment, open/close sensor, open/close speed control valve, and materials required for installation. Adopting high precision and high rigidity bearing, it can be used for long grip point applications.

  Open/Close Type	Parallel　Linear　Gripper(Standard Type)
  Cylinder Bore[mm]	25mm	Number of Lever	2
  Operating Type	Double Acting	Gripping Force(Closing Force) *Force exerted on work piece	82.0N
  Stroke	18.0mm	Product Mass[g]	720g～
  Operating Temperatura Range[°]	0～60℃ (No Freezing)
  Switch	Included	Opening and closing speed valve	Included
  Supported Robot	RS-003N,RS-005N/L,RS-007N/L. Compatible robots are as follows. * Select a robot according to the gripper and work weight.
  Provided CAD data Plugin	DXF・STEP



  Outline drawing
  mounting example

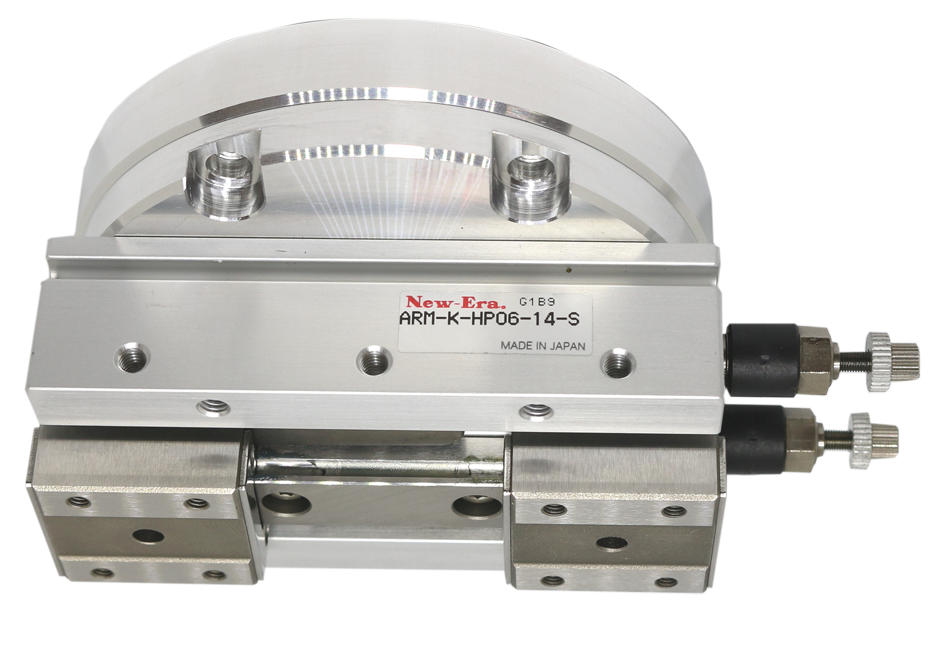

  ARM-K-HP06-14-S

  Feature	Compatible with the dual-arm SCARA robot “duAro 1,2” robotics R series. Including mounting attachment, open/close sensor, open/close speed control valve, and materials required for installation. Adopting high precision and high rigidity bearing, it can be used for long grip point applications.

  Open/Close Type	Thin Parallel　Linear　Gripper
  Cylinder Bore[mm]	14mm	Number of Lever	2
  Operating Type	Double Acting	Gripping Force(Closing Force) *Force exerted on work piece	58.8N
  Stroke	30.0mm	Product Mass[g]	800g～
  Operating Temperatura Range[°]	0～60℃ (No Freezing)
  Switch	Included	Opening and closing speed valve	Included
  Supported Robot	RS-003N,RS-005N/L,RS-007N/L,duAro1,duAro2. Compatible robots are as follows. * Select a robot according to the gripper and work weight.
  Provided CAD data Plugin	DXF・STEP



  Outline drawing
  mounting example

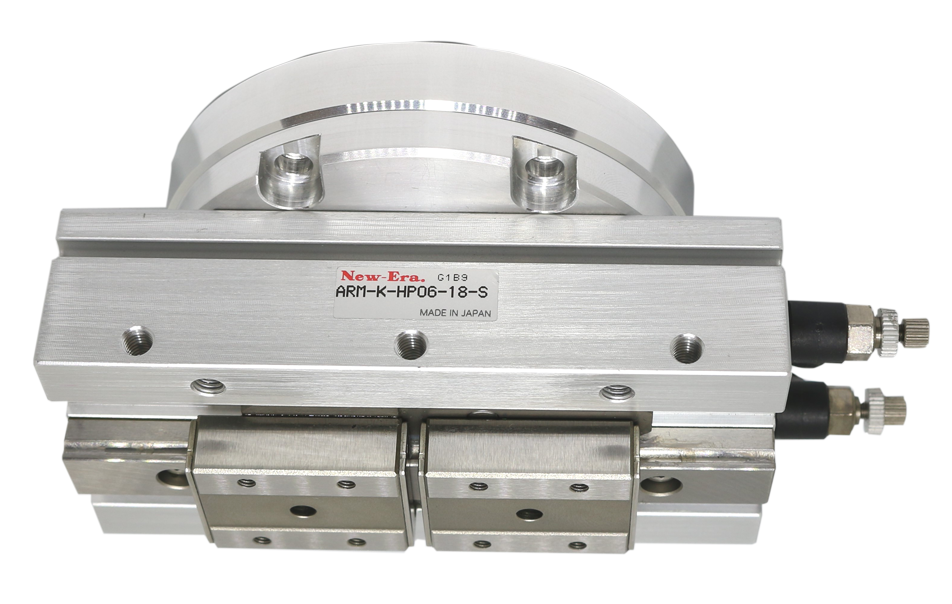

  ARM-K-HP06-18-S

  Feature	Compatible with the robotics R series. Including mounting attachment, open/close sensor, open/close speed control valve, and materials required for installation. Adopting high precision and high rigidity bearing, it can be used for long grip point applications.

  Open/Close Type	Thin Parallel　Linear　Gripper
  Cylinder Bore[mm]	18mm	Number of Lever	2
  Operating Type	Double Acting	Gripping Force(Closing Force) *Force exerted on work piece	107.8N
  Stroke	40.0mm	Product Mass[g]	1100g～
  Operating Temperatura Range[°]	0～60℃ (No Freezing)
  Switch	Included	Opening and closing speed valve	Included
  Supported Robot	RS-005N/L,RS-007N/L,RS-013N. Compatible robots are as follows. * Select a robot according to the gripper and work weight.
  Provided CAD data Plugin	DXF・STEP



  Outline drawing
  mounting example

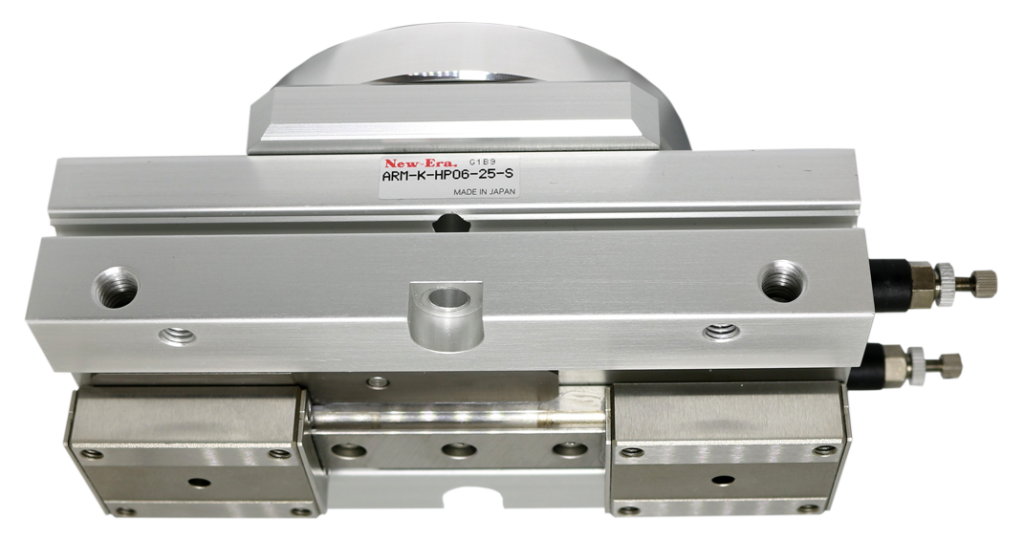

  ARM-K-HP06-25-S

  Outline drawing
  mounting example

  Feature	Compatible with the robotics R series. Including mounting attachment, open/close sensor, open/close speed control valve, and materials required for installation. Adopting high precision and high rigidity bearing, it can be used for long grip point applications.

  Open/Close Type	Thin Parallel　Linear　Gripper
  Cylinder Bore[mm]	25mm	Number of Lever	2
  Operating Type	Double Acting	Gripping Force(Closing Force) *Force exerted on work piece	208.3N
  Stroke	50.0mm	Product Mass[g]	2100g～
  Operating Temperatura Range[°]	0～60℃ (No Freezing)
  Switch	Included	Opening and closing speed valve	Included
  Supported Robot	RS-007N/L,RS-013N. Compatible robots are as follows. * Select a robot according to the gripper and work weight.
  Provided CAD data Plugin	DXF・STEP HP04VR-20C-ASSISTA  (Type:NPN） HP04VR-20C-ASSISTAｰA （Type:PNP） Feature Parallel type air Gripper compatible with Mitsubishi ASSISTA plug & play Adopting high precision and high rigidity bearing, it can be used for long grip point applications. Including mounting attachment, open/close sensor, open/close speed control valve, and materials required for installation. Open/Close Type Parallel　Linear　Gripper Cylinder Bore[mm] 20mm Number of Lever 2 Operating Type Double Acting Gripping Force(Closing Force) *Force exerted on work piece 45.0N Stroke 14.0mm Product Mass[g] 950g～ Operating Temperatura Range[°] 0～60℃ Switch Included Opening and closing speed valve Included Supported Robot MELFA ASSISTA Provided CAD data Plugin

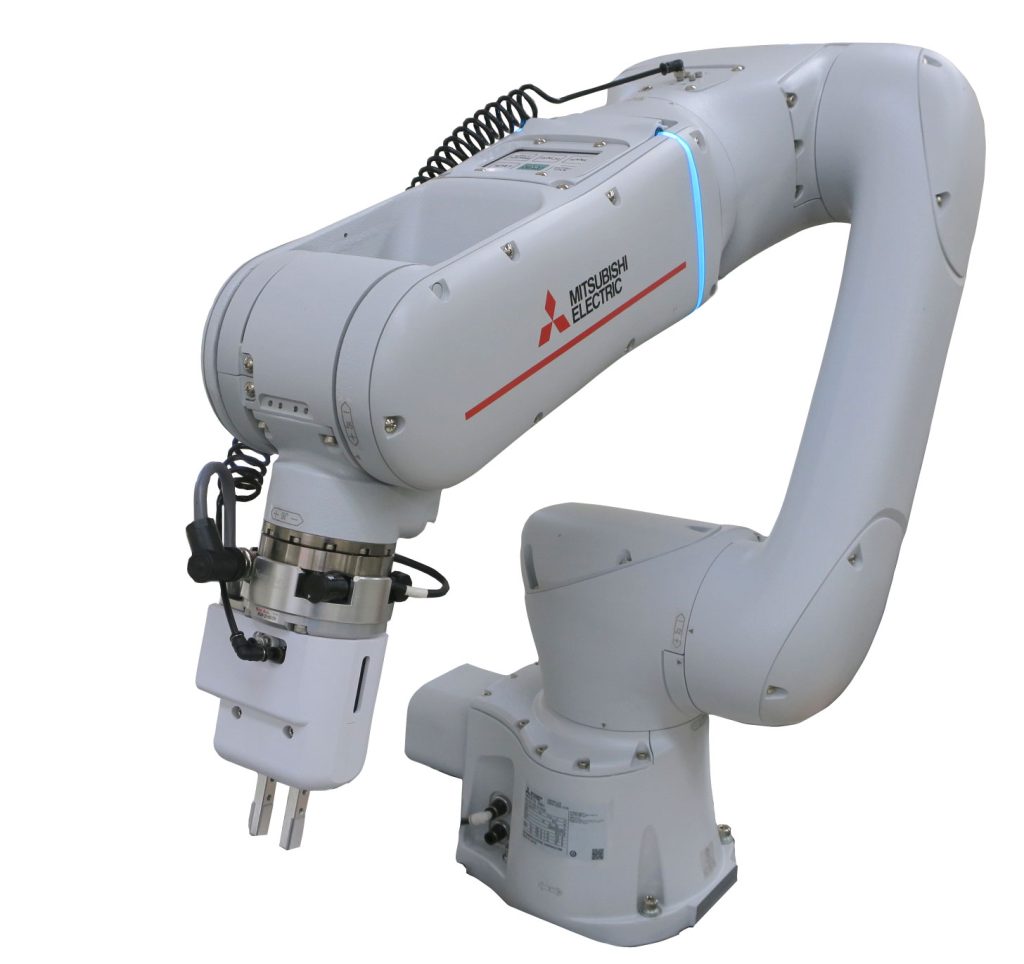

  HP04VR-20C-ASSISTA  (Type:NPN）
  HP04VR-20C-ASSISTAｰA （Type:PNP）

  Feature	Parallel type air Gripper compatible with Mitsubishi ASSISTA plug & play Adopting high precision and high rigidity bearing, it can be used for long grip point applications. Including mounting attachment, open/close sensor, open/close speed control valve, and materials required for installation.

  Open/Close Type	Parallel　Linear　Gripper
  Cylinder Bore[mm]	20mm	Number of Lever	2
  Operating Type	Double Acting	Gripping Force(Closing Force) *Force exerted on work piece	45.0N
  Stroke	14.0mm	Product Mass[g]	950g～
  Operating Temperatura Range[°]	0～60℃
  Switch	Included	Opening and closing speed valve	Included
  Supported Robot	MELFA ASSISTA
  Provided CAD data Plugin



  HP04VR-20C-CRX

  Feature	Air Gripper for FANUC CRX series CRX series For EE connector joint Gripping at a long point is available by the use of the linear guide Mounting attachment, open/close sensor, open/close speed control valve and all necessary parts for installation are included.
